Documentation

Measure the mold plates and support pillars etc, and make sure all the components are within tolerance

                                                                   Prepare for shipping

Finalization is an end process by our quality team to make sure everything is ready for shipping and meets all the customer requirements and specifications.

Final Mold Test

Accordino to the customers reourement for the radius on soure. we measure the spherca radius and make sure it suitable for the dlient iniection machine

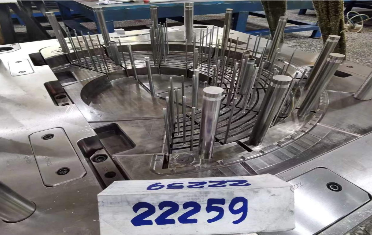

Ejection test

We use mechanical, hydraulic press, injection machine and overhead crane to lift down to test and see if the ejector pins can be moved smoothly, then use 0.02mm fin foil to detect stop pins with red/blue painting, if they can move smooth and see the red/blue painting even, which means OK.

Cooling line testing

We measure the water amount and leakage, use the pressure gauge and set it with four kilograms of pressure and keep it for four minutes without leaking. Use the flow meter to measure the flow, the flow shows 2.0 or more are OK, the higher the better.

Documentation

Complete documentation, 2D Mold Drawing and 3D Mold Drawings, trial parameters, trial video, material certifications, Dimensional Report

Final Mold Test

Depending on customer requirements we can run the tool for up to 3 hours before shipping (with resin supplied)

Specifications

Quality team will review the original customer specifications to ensure all requirements have been met

Packaging

Vacuum sealed and customized shipping container to prevent damage during shipment.
